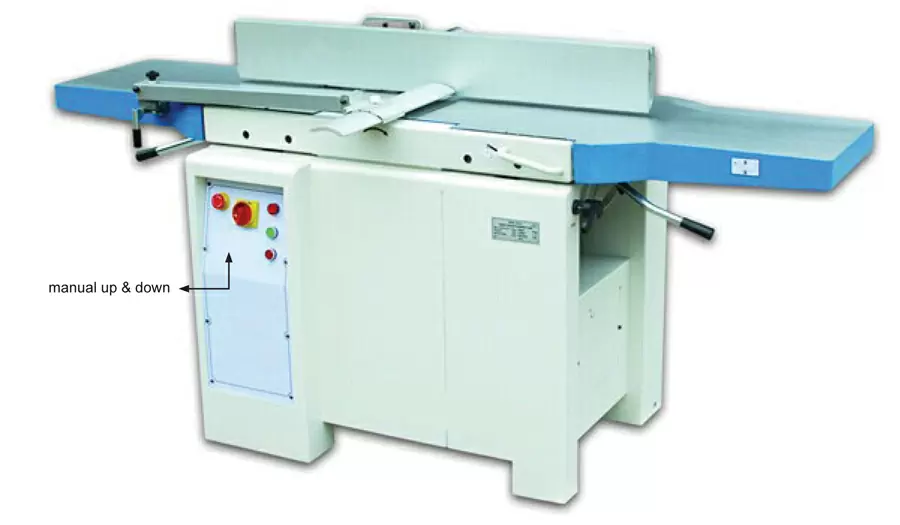

Combined planer thicknesser MP410A

PRODUCTS

Combined planer thicknesser MP410A

Chat Us
Online Message

【DESCRIBE】

ModelMP410A
Max planing width410mm
Max planing depth5mm
Max width of thickness410mm
Table size of surface planing2195x574mm
Table size of thicknesser775x410mm
Ranges of thicknessing6-240mm
Feeding speed7m or 14m/min
Dia of arbor95mm
Blade size410x30x3mm
Number of knives4pcs
Rotation speed of the spindle5200rpm
Size of rip fence1200x160mm
Fence tilting90°-45°
Sunction dust hoodΦ120mm
Shaft stop time≤10sec
Motor4kW
Weight574/680kg
Dimension2192x809x1087mm
Packing size2280x1000x1100mm
Units/20' GP12pcs
Min working length180mm
Dia of feeding rollerΦ49mm
Note : The products updating constantly ,please forgive us do not issuing a seperate notice if there is any designing change.

Advantages:

1.The planer fence maybe tilted to any degree between 90° and 45°, there are positive stops at 90° and 45°.
2.It is easy change qucikly from planer to thicknessing on your machine.
3.Tension springs on each table help to raise the planer tables.
4.Long, heavily ribbed cast iron planer tables offer precision and stability. Surfing-thicknessing machine, professional, massive and compact, for a high-flexible production, ideal for the demanding craftsman and carpentry.
5. For mortising unit you can, on request, equip your machinery with the horizontal mortiser.
6. Best support in all machinings, thanks to the 2200mm long surfacing tables.
