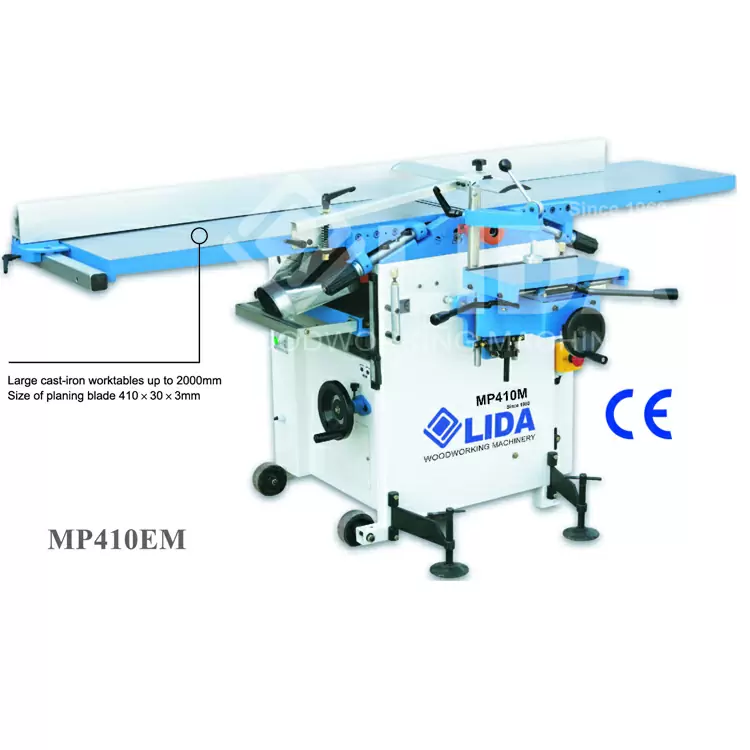

Combined planer thicknesser MP410EM

PRODUCTS

Combined planer thicknesser MP410EM

【DESCRIBE】

ModelMP410EM
Max planing width410mm
Max planing depth4mm
Max width of thickness408mm
Table size of surface planing1809x510mm
Table size of thicknesser600x308mm
Ranges of thicknessing5-230mm
Feeding speed7m/min
Dia of arbor72mm
Blade size410x30x3mm
Number of knives3pcs
Rotation speed of the spindle5200rpm
Size of rip fence1200x160mm
Fence tilting90°-45°
Sunction dust hoodΦ120mm
Shaft stop time≤10sec
Motor3kW
Weight377/457kg
Dimension2010x727x1087mm
Packing size1910x820x1120mm
Units/20' GP14pcs
Dia of driling3-16mm
Table size of mortiser470x230mm
Max driling depth80mm
Min working length140mm
Dia of feeding rollerΦ30mm
Note : The products updating constantly ,please forgive us do not issuing a seperate notice if there is any designing change.

Features:

1,Long ,heavily ribbed cast iron planer tables offer  precision and stability. Planing -thicknessing machine,professional  ,massive and compact ,for a high-flexible production; ideal for the demanding craftman and carpentry.
2,Machine is equipped with the horizontal mortiser.
3,Best support in all machines, thanks to the around 1809 mm long surfing tables.
4,It is a light model ,with weight 377kgs.
5,With quite competitive price
